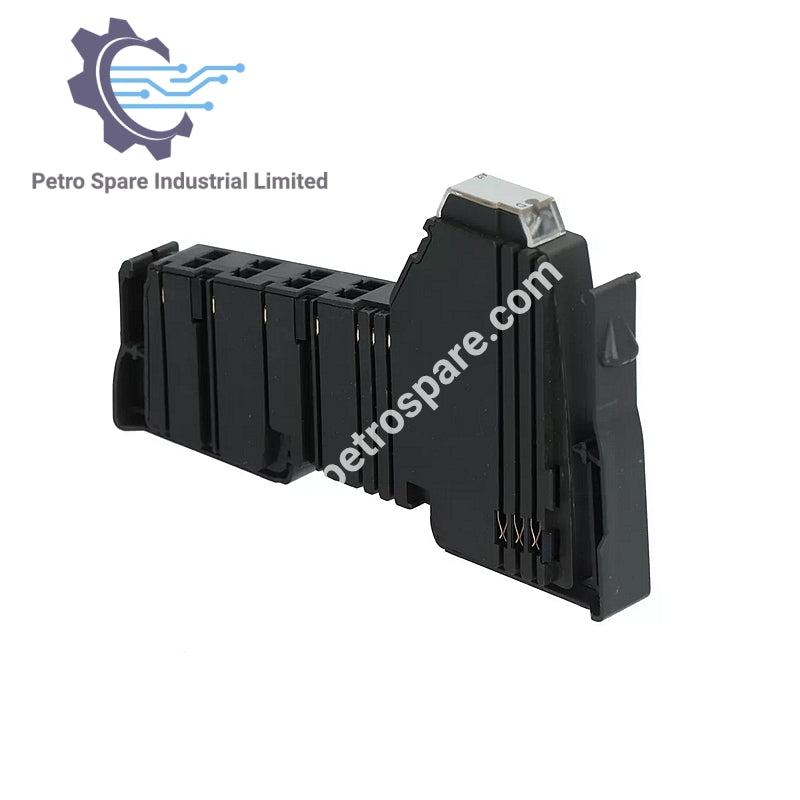

IC220ALG220 GE Fanuc Analog Input 15 Bit Voltage/Current 2 Channels

Product Overview

GE Fanuc IC220ALG220 is a 2-channel, 15-bit Analog Input Module for voltage and current measurement.

Electrical Specifications

• Connection Style: 2- and 3-wire

• Sensor Power: External power supply

• I/O Supply Voltage (UANA): 24 VDC

• Current Consumption (Local Bus): ~45 mA typical

• Current Consumption (Analog Bus UANA): ~12 mA typical

• Total Power Consumption: ~0.63 W typical

Environmental Conditions

• Operating Temperature: -25°C to +55°C (-13°F to +131°F)

• Storage Temperature: -25°C to +85°C (-13°F to +185°F)

• Operating Humidity: 75% average, precautions above 85%

• Storage Humidity: 75% average

Physical Dimensions

• Width: 12.2 mm (0.49 in)

• Height: 120 mm (4.8 in)

• Depth: 71.5 mm (2.86 in)
