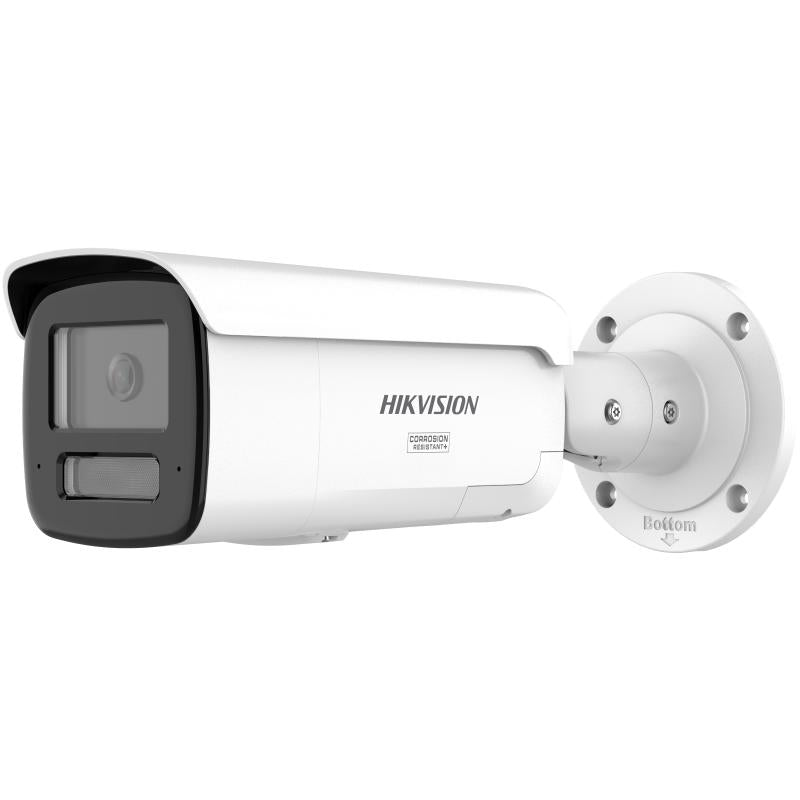

Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP Smart Hybrid Light ColorVu Fixed Bullet Network Camera with Two-Way Audio, Strobe Alarm, IP67 & NEMA 4X
-
Free Shipping & Returns: On all orders over $50
Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP Smart Hybrid Light ColorVu Fixed Bullet Network Camera with Two-Way Audio, Strobe Alarm, IP67 & NEMA 4X
The Hikvision DS-2CD2T87G3-LIS2UY/SL is a professional 8MP Smart Hybrid Light ColorVu fixed bullet network camera designed for high-resolution outdoor CCTV surveillance, 24/7 vivid colour imaging, intelligent person and vehicle detection, two-way audio, active deterrence, IP67 weather resistance and NEMA 4X anti-corrosion protection.
Built around a 1/1.8" Progressive Scan CMOS sensor, the DS-2CD2T87G3-LIS2UY/SL captures detailed 8MP / 4K Ultra HD video up to 3840 × 2160. Hikvision ColorVu technology, an F1.0 super-aperture lens and high-performance sensor design help the camera produce bright, colourful images in very low-light conditions. Its Smart Hybrid Light system integrates IR and white light with three supplemental lighting modes and provides illumination up to 60 m, making it suitable for driveways, warehouses, car parks, commercial perimeters and large outdoor areas.
For intelligent event detection, the camera uses deep learning to focus on person and vehicle classification, helping reduce irrelevant motion alarms. It also supports face capture, perimeter protection events including line crossing and intrusion detection, scene change detection, and multiple linkage actions such as recording, capture, alarm output, audible warning and strobe light flashing.
The DS-2CD2T87G3-LIS2UY/SL includes built-in arrayed dual microphones, a built-in speaker, two-way audio capability, 2 alarm inputs and 2 alarm outputs. This makes it a strong choice for sites requiring both video verification and active response. With a metal bullet housing, IP67 protection, NEMA 4X anti-corrosion protection and an operating range of -30 °C to 60 °C, it is designed for demanding professional surveillance environments.
What’s Included in the Box
- Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP fixed bullet network camera
- Mounting accessories
- Installation guide / documentation
- Product packaging
Box contents may vary depending on distributor package configuration.
Main Features
- 8MP / 4K Ultra HD resolution up to 3840 × 2160
- 24/7 vivid colour imaging with Hikvision ColorVu technology
- F1.0 advanced lens for enhanced low-light performance
- HikAI-ISP for excellent noise reduction
- Scene-adaptive 130dB WDR for challenging lighting conditions
- Deep learning person and vehicle classification
- Smart Hybrid Light with IR and white light
- Three supplemental lighting modes
- Up to 60 m supplemental light range
- Built-in arrayed dual microphone for real-time audio security
- Built-in speaker for two-way audio and deterrence
- Active strobe light and audio alarm to warn intruders
- Audio and alarm interface available
- 2 alarm inputs and 2 alarm outputs
- Face capture support
- Line crossing, intrusion, region entrance and region exiting detection
- microSD/microSDHC/microSDXC support up to 512GB
- IP67 water and dust resistance
- NEMA 4X anti-corrosion protection
- Metal front cover, body and bracket
- PoE IEEE 802.3at Class 4 and 12 VDC power support
- ONVIF Profile S, Profile T and Profile G compatibility
Detailed Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 |
| Minimum Illumination | Colour: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens |
| Lens Options | 2.8 mm / 4 mm |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| 2.8 mm FOV | Horizontal 108.8°, Vertical 56.4°, Diagonal 134.3° |
| 4 mm FOV | Horizontal 93.3°, Vertical 47.2°, Diagonal 114.2° |
| Depth of Field | 2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞ |
DORI Distance
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8 mm | 89 m | 35 m | 17 m | 8 m |
| 4 mm | 109 m | 43 m | 21 m | 10 m |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Specification | Details |
|---|---|
| Main Stream | 50 Hz: 25 fps; 60 Hz: 30 fps at up to 3840 × 2160 |
| Main Stream Resolutions | 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 |
| Sub-Stream | 50 Hz: 25 fps; 60 Hz: 30 fps at up to 1280 × 720 |
| Third Stream | 50 Hz / 60 Hz: 10 fps at up to 1920 × 1080 |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding | H.264 and H.265 |
| ROI | 1 fixed region for main stream |
Audio
| Specification | Details |
|---|---|
| Audio Type | Mono sound |
| Built-in Microphone | Arrayed dual microphone |
| Built-in Speaker | Max. power consumption: 2 W; max. sound pressure level: 120 dB at 10 cm |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 64 Kbps G.711; 16 Kbps G.722.1/G.726; 32–192 Kbps MP2L2; 8–320 Kbps MP3; 16–64 Kbps AAC-LC |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Environment Noise Filtering | Yes |
| Audio Input | 1 line input, two-core terminal block |
| Audio Output | 1 line output, two-core terminal block |
Network
| Specification | Details |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF Profile S, Profile T, Profile G, ISAPI, SDK, ISUP |
| Users | Up to 32 users |
| User Levels | Administrator, operator and user |
| Security | Password protection, HTTPS encryption, 802.1X, watermark, IP address filter, RTSP over HTTPS, audit log, TLS 1.1/1.2/1.3 and host authentication |
| Network Storage | NAS via NFS or SMB/CIFS, Auto Network Replenishment |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+ |
| Specification | Details |
|---|---|
| WDR | 130 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| SNR | ≥ 52 dB |
| Image Stabilisation | EIS |
| Privacy Mask | 4 programmable polygon privacy masks |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance |
Interface
| Specification | Details |
|---|---|
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Onboard Storage | microSD/microSDHC/microSDXC card slot, up to 512GB |
| Built-in Microphone | Arrayed dual microphone |
| Built-in Speaker | 2 W, up to 120 dB at 10 cm |
| Audio Interface | 1 line input, 1 line output |
| Alarm Interface | 2 inputs, 2 outputs, max. 24 VDC/24 VAC, 1A |
| Reset Key | Yes |
Event & Analytics
| Function | Details |
|---|---|
| Basic Events | Motion detection with human/vehicle target type support, video tampering alarm, exception |
| Smart Event | Scene change detection |
| Deep Learning | Person and vehicle classification |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Linkage Actions | Upload to FTP/NAS/memory card, notify surveillance centre, trigger capture, send email, trigger alarm output, trigger recording, audible warning, strobe light flashing |
General
| Specification | Details |
|---|---|
| Power | 12 VDC ±25%, 1.41 A, max. 17 W |
| PoE | IEEE 802.3at, Class 4, max. 18 W |
| Material | Front cover: metal; body: metal; bracket: metal |
| Dimensions | 286.7 mm × 93.3 mm × 91.2 mm |
| Package Dimensions | 386 mm × 156 mm × 155 mm |
| Weight | Approx. 1250 g |
| Packaged Weight | Approx. 1800 g |
| Operating Conditions | -30 °C to 60 °C; humidity 95% or less, non-condensing |
| Storage Conditions | -30 °C to 60 °C; humidity 95% or less, non-condensing |
| General Functions | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
Approvals & Protection
| Category | Details |
|---|---|
| EMC | CE-EMC, RCM: AS/NZS CISPR 32:2015, IC, KC |
| Safety | UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1 |
| Environment | CE-RoHS 2011/65/EU |
| Ingress Protection | IP67: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X: NEMA 250-2018 |
Available Models
- DS-2CD2T87G3-LIS2UY/SL 2.8mm
- DS-2CD2T87G3-LIS2UY/SL 4mm
Optional Accessories
- DS-1275ZJ-SUS – Vertical pole mount
- DS-1276ZJ-SUS – Corner mount
- DS-1260ZJ – Junction box
- DS-1280ZJ-S – Junction box
- DS-1275ZJ-S-SUS – Vertical pole mount
Warranty Information
The Hikvision DS-2CD2T87G3-LIS2UY/SL is covered by the applicable Hikvision 3 year warranty terms for the Australian and New Zealand market.
Brand Description
Hikvision is a global provider of professional video surveillance and security technology, offering IP cameras, network video recorders, access control solutions, analytics and integrated security systems for residential, commercial, industrial and public-sector applications. The DS-2CD2T87G3-LIS2UY/SL combines Hikvision’s ColorVu imaging, Smart Hybrid Light, intelligent detection and active deterrence in a robust fixed bullet design.
Practical Use Scenarios
- Commercial building perimeters
- Warehouse entrances and loading docks
- Industrial yards and logistics facilities
- Retail store exteriors and after-hours monitoring
- Car parks, driveways and vehicle access points
- School and campus perimeter surveillance
- Apartment complex entrances and shared outdoor areas
- Sites requiring visible deterrence with strobe light and audible warning
- Outdoor locations requiring extended 60 m supplemental lighting
- Areas with moderate anti-corrosion requirements, including coastal zones approximately 2 km from coastlines or areas affected by acid rain
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-2CD2T87G3-LIS2UY/SL is well suited to Australian and New Zealand CCTV projects requiring 8MP / 4K outdoor surveillance, 24/7 colour imaging, active deterrence, two-way audio and intelligent analytics. The supplied specification lists RCM: AS/NZS CISPR 32:2015, supporting alignment with Australian and New Zealand EMC requirements.
Its IP67 weather resistance, NEMA 4X anti-corrosion protection, metal construction and -30 °C to 60 °C operating range make it suitable for many local residential, commercial and industrial surveillance applications. NDSS approval is not applicable to this product category, as the DS-2CD2T87G3-LIS2UY/SL is a CCTV network camera, not a medical or diabetes-related product.
For reliable supply, product authenticity and proper warranty support, the DS-2CD2T87G3-LIS2UY/SL should be sourced through authorised Hikvision representatives or approved Australian and New Zealand distribution channels. Warranty support should be handled through the authorised seller or by direct communication with the brand representative.
FAQs
Q1: What resolution does the Hikvision DS-2CD2T87G3-LIS2UY/SL provide?
The Hikvision DS-2CD2T87G3-LIS2UY/SL provides 8MP / 4K Ultra HD resolution with a maximum image size of 3840 × 2160.
Q2: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL support colour night vision?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL uses Hikvision ColorVu technology with an F1.0 lens and Smart Hybrid Light to support vivid colour imaging in low-light environments.
Q3: What is the illumination range of the Hikvision DS-2CD2T87G3-LIS2UY/SL?
The Hikvision DS-2CD2T87G3-LIS2UY/SL provides up to 60 m supplemental light range using its integrated IR and white light system.
Q4: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL have two-way audio?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL includes built-in arrayed dual microphones and a built-in speaker, enabling real-time audio security and two-way audio communication.
Q5: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL include active deterrence?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL includes an active strobe light and audio alarm to help warn intruders and support proactive site security.
Q6: Is the Hikvision DS-2CD2T87G3-LIS2UY/SL suitable for outdoor installation?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL is rated IP67, providing water and dust resistance for outdoor CCTV applications when installed correctly.
Q7: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL support person and vehicle detection?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL supports deep learning-based person and vehicle classification, helping reduce unwanted alarms from irrelevant movement.
Q8: Can the Hikvision DS-2CD2T87G3-LIS2UY/SL record to a microSD card?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL includes a built-in memory card slot supporting microSD, microSDHC and microSDXC cards up to 512GB.
Q9: What lens options are available for the Hikvision DS-2CD2T87G3-LIS2UY/SL?
The Hikvision DS-2CD2T87G3-LIS2UY/SL is available with 2.8 mm and 4 mm fixed lens options.
Q10: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL support alarm input and output?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL supports 2 alarm inputs and 2 alarm outputs, allowing integration with compatible alarm devices.
Q11: Does the Hikvision DS-2CD2T87G3-LIS2UY/SL support PoE?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL supports PoE IEEE 802.3at Class 4, with maximum PoE power consumption of 18 W.
Q12: Is the Hikvision DS-2CD2T87G3-LIS2UY/SL suitable for Australian and New Zealand CCTV projects?
Yes. The Hikvision DS-2CD2T87G3-LIS2UY/SL is suitable for many Australian and New Zealand CCTV installations, with the supplied specification listing RCM: AS/NZS CISPR 32:2015, IP67 protection and NEMA 4X anti-corrosion protection.
