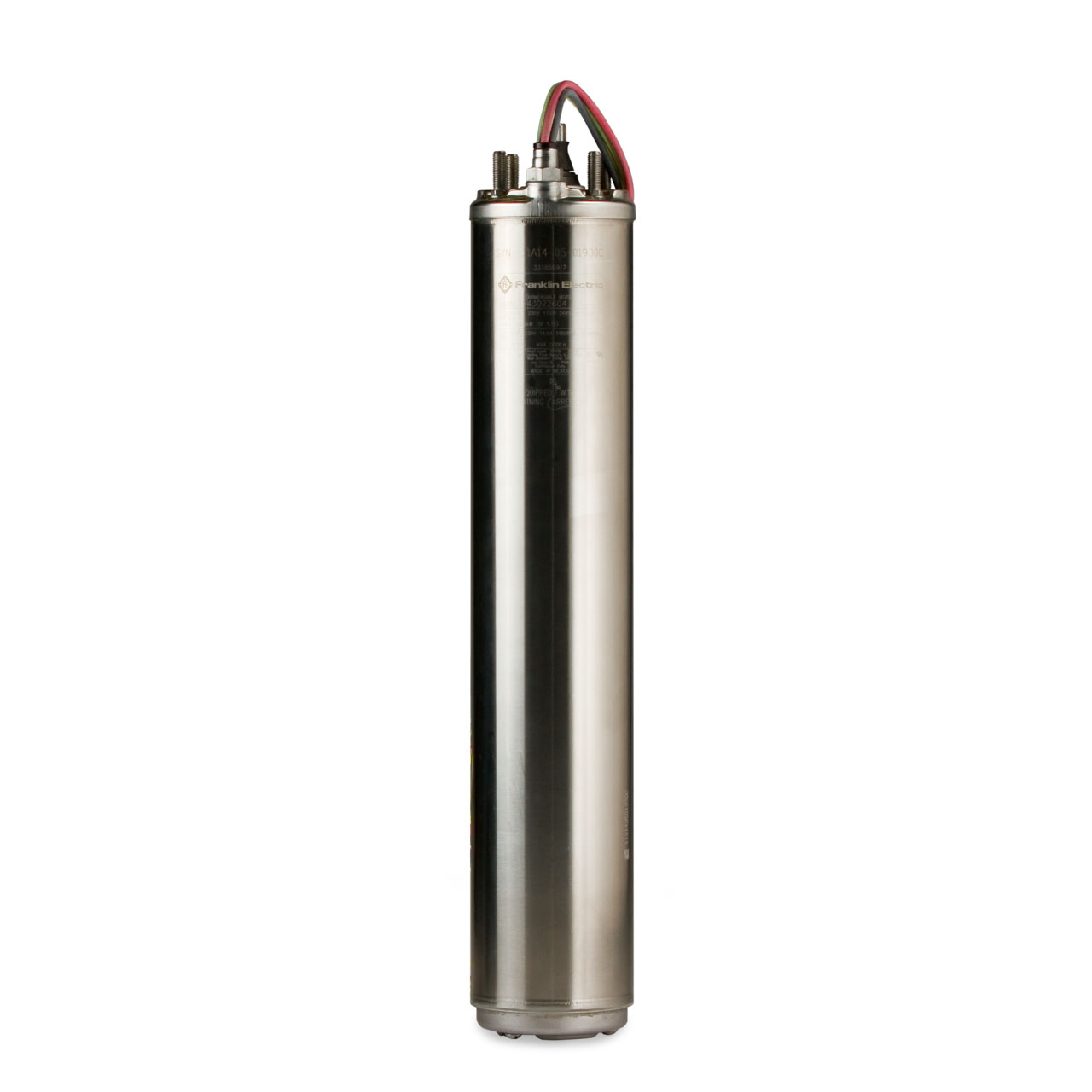

Franklin Electric 2247020620 Super Stainless Series 600M Motor 4" 3.0 HP 230V 3-Wire Single-Phase

Franklin Electric 4" Super Stainless Submersible Motors

Franklin Electric offers a complete line of submersible motors for groundwater and other submerged pumping applications. The Franklin 4 in. Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades. Designed and patented in 1950 by Franklin's founder, Ed Schaefer, this motor has proven to be the industry’s most trusted residential pump motor. These motors are built for dependable operation in 4 in. diameter or larger water wells.

Franklin Electric 4" Submersible Motor Features

• Corrosion-Resistant All Stainless Steel Exterior Construction
• Stainless Steel Splined Shaft
• Hermetically-Sealed Windings
• Anti-Track Self-Healing Resin System
• Water Lubrication
• Filter Check Valve
• Kingsbury-Type Thrust Bearing
• Pressure Equalizing Diaphragm
• Built-In Lightning Arrestors (all single-phase; 200 and 230 Volt three-phase)
• Removable “Water-Bloc” lead installed In North American 60 Hz water well motors.
• UL 778 Recognized (North American Voltages)
• CSA Certified
• ANSI/NSF 61 Certified
• NEMA Mounting Dimensions
• Rotation: Single-Phase - CCW; Three-Phase Electrically Reversible
